The Legacy Hub

The Legacy Hub is a dashboard for Hubble, where you can find shortcuts to the many features available in the product. It is the home page that provides overall visibility to what is happening within the application. It provides a quick glance at the items that may require your attention. The Legacy Hub is the default starting page unless you define a default workspace in your Preferences Settings.

The Legacy Hub is a series of cards that are fixed in their layout and arranged on a single screen, providing an easy way to navigate. These cards allow you to look at various items in Summary or Detail. By clicking on the icon in the lower right corner, you can switch from a summary to a detailed view. By clicking custom, you can determine your desired layout where some cards can be in summary and some in detailed view.

See what you want based on what is relevant to you!

Legacy Hub Components

Messages

See your current unread messages. Messages are between Hubble users.

Alerts

If you create or subscribe to data-driven alerts, unread alerts are detailed here.

Open Workspaces

Gain quick access to any workspace you have open.

Statistics

View your Hubble usage statistics, productivity, collaboration and networking information.

Notifications

Review messages about system events or other Hubble information that the system thinks you care about. Watch for workspaces that have been shared with you!

Following

See unread discussions for views or groups that you follow.

Discussions

See unread discussions for views or groups that you follow.

News

View published tips and information from insightsoftware.com.

Tasks

See your outstanding tasks including approvals and user-assigned tasks.

Legacy Hub Navigation Options

Select Page

Within some cards, move between pages by selecting the square boxes at the bottom of the Details window.

View Slider

The Summary, Detail, and Custom options for your cards.

Card Flip

Flip from the Summary to the Details of the individual cards by clicking the right hand corner of the card. Once in Details Mode, you can drill down even further to the relevant item.

Badges

Badges are a visual representation of activity requiring your attention. These are color-coded to match the cards show in the Hub. In this example, there is 1 Warning, 6 Notifications, 2 Alerts, 1 Task, and 5 Communications (a combination of Messages and Discussions).

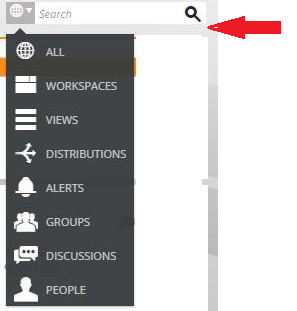

Search Bar/Window

Do a global search within Hubble. Optionally, narrow down your search by clicking on the icon to the left of the Search Bar and selecting the specific item you are searching for.

Navigation Bar

The Navigation Bar, available from all screens in Hubble, has the following options:

  • Hub Icon - Returns you to the Legacy Hub from any other screen.
  • Workspaces Icon - Shows all your open workspaces.
  • Bookmarks - List of Bookmarks
  • Logout

Profile Picture Drop-down Menu

In the upper right corner of every screen, you see your profile picture. The drop-down menu next to your profile picture has several options.

  • Profile - Clicking on your picture itself or selecting Profile brings you to your profile, where you can change your picture, see your personal information such as phone number, email address and work address. You see your statistics based on your use of Hubble.

    You also see all your workspaces, distributions, and alerts, and can search for them from here using the filter.

    Tip: Include your real picture in your profile. Pictures are very important to help people connect.

  • Message - Send personal messages to other Hubble users. See Personal Messages.
  • Settings - Set various settings including:
    • Personal Details - Personal, company and contact information.
    • Preferences - Default profile to be used when logging in to the application, default start page, theme, background, grid display settings (see below), time zone, locale, and language.

      The option is available in the sidebar of the homepage, providing users with easier access. Users can edit a Profile and set the Time Zone, Locale, and Language settings from the sidebar preference setting.

      • Note: The preference setting is available in the previous location (Old Hub) and can still be used to set the workspace grid settings.

    • About - The About option is relocated to a new settings page for easier access, while still being available in its original location. This new page, accessible via the sidebar, provides details on build versions, server instances, sessions, opened workplaces, reports, and services.

Note: See Localization in Hubble Web for more details of the Locale and Language settings in Hubble Web.

  • Grid - To make it easier to read a large amounts of grid data, table cells can be separated by row and column lines (default report styles do not separate cells), piano line shading may be added, and rows highlighted when the mouse is hovered over them.

    The four options are all enabled by default.

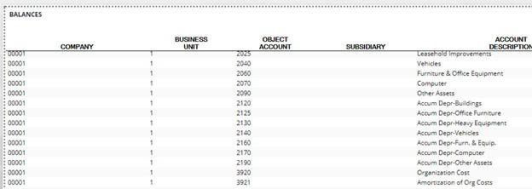

    Example of a grid with row lines switched on:

    • Grid - To make it easier to read a large amounts of grid data, table cells can be separated by row and column lines (default report styles do not separate cells), piano line shading may be added, and rows highlighted when the mouse is hovered over them.

      The four options are all enabled by default.

      Example of a grid with row lines switched on:

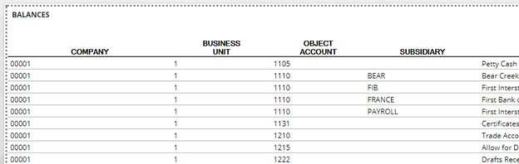

      Example of a grid with piano lines switched on:

    • Note: The cell borders and piano lines added by these options are only visible in the Web interface. They will not be included in reports exported to Excel or PDF (the reports themselves are not edited, only how they are displayed in Hubble Web).

    Grid lines do not override border styles for the report views that were specified with custom border styles.

    • Notifications - Events you wish to be notified about via email. See Notifications.
    • Password - Used to change your password.

Localization in Hubble Web

The Locale setting allows you to view numbers and dates in Hubble Web in the format of your choice. The Language setting gives you the ability to view the Web version in your native language.

Note: The exception to this is that language that the contents of reports are in is not set in Hubble Web. It is controlled by user preference settings in Hubble Desktop and/or the Administration tool. Refer to their user guides for details.

The following languages are available:

  • Arabic
  • Brazilian Portuguese
  • German
  • Dutch
  • English (United St)
  • French
  • Hungarian
  • Italian
  • Japanese
  • Portuguese
  • Simplified Chinese
  • Spanish

To set locale and language, after logging into Hubble, the navigate to the Preferences dialog as described above. Select required locale from the Locale drop-down. For example, 'DEUTSCH (DEUTSCHLAND)':

Select a language from the Language drop-down.

The first option in the drop-down 'USE LOCALE (language)' enable you to set the language based on the Locale setting you chose.

For example, if you chose 'USE LOCALE (DEUTSCH)' from the Locale list both the Language will automatically be set to the Deutsch (German) language.

In order for the setting to take affect, you must first log out and then in again (you will be prompted to do so when you press Save).

Once you log back in, the Hubble Web interface will be displayed selected language.

The format of dates and numbers in reports also reflect the setting. For example, in this case numbers are displayed in 1.234.567,89 format and dates are displayed in the dd.mm.yyyy format.

If a language is selected from the Language list instead of ‘USE LOCALE’, the Web interface will be displayed in that language instead. The format of dates and numbers will still reflect the selection made from the Locale list.

Also note that:

  • You will receive notification messages, etc. translated into the selected language.
  • PDFs are exported in the selected language.

Setting the Language and Locale for new Users

New users of Hubble web can set their Locale in the Preferences section of their user settings (accessed from the Profile Picture Drop-down Menu). The default locale and language is ENGLISH (United States).

Note: When you load Hubble web the first time, the login page will be displayed in your browser language. This will also happen after you clear your browser cache/cookies.
Once you log out and then log back in, the selected language setting will be applied and the Login page will be displayed in the selected language.
